SPECIFICATIONS

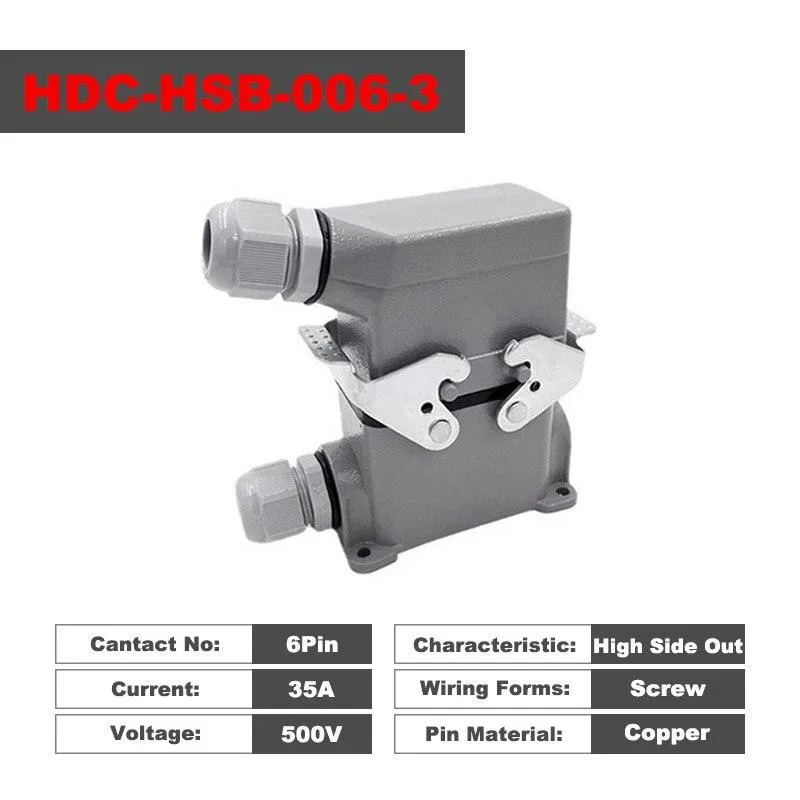

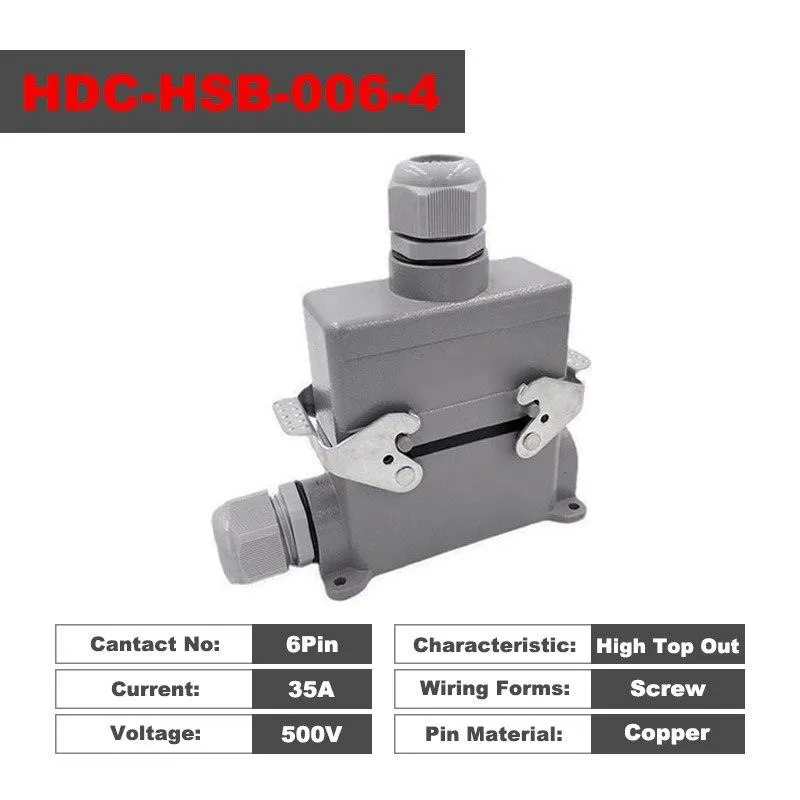

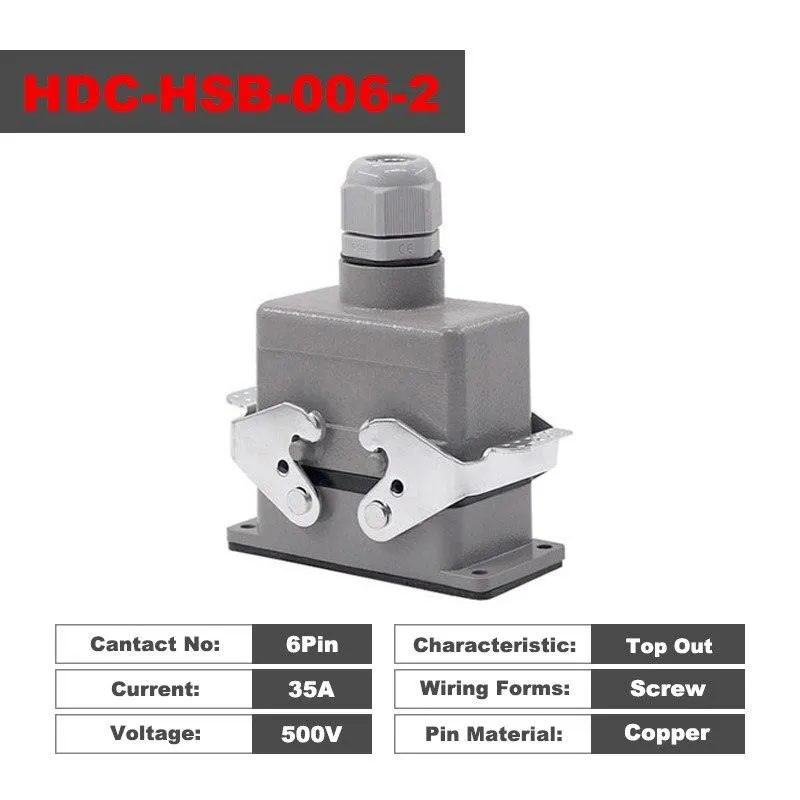

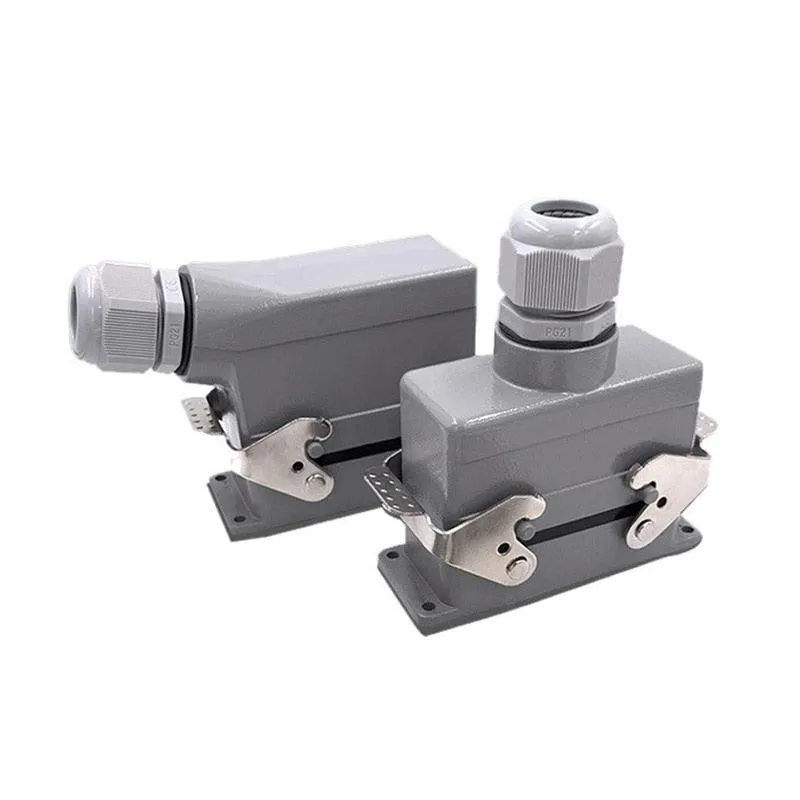

Heavy Duty Connectors HDC-HSB-006-1/2/3/4 F/M 6pin 35A Screw connection Industrial rectangular Aviation connector plug

Voltage: 24V

Origin: Mainland China

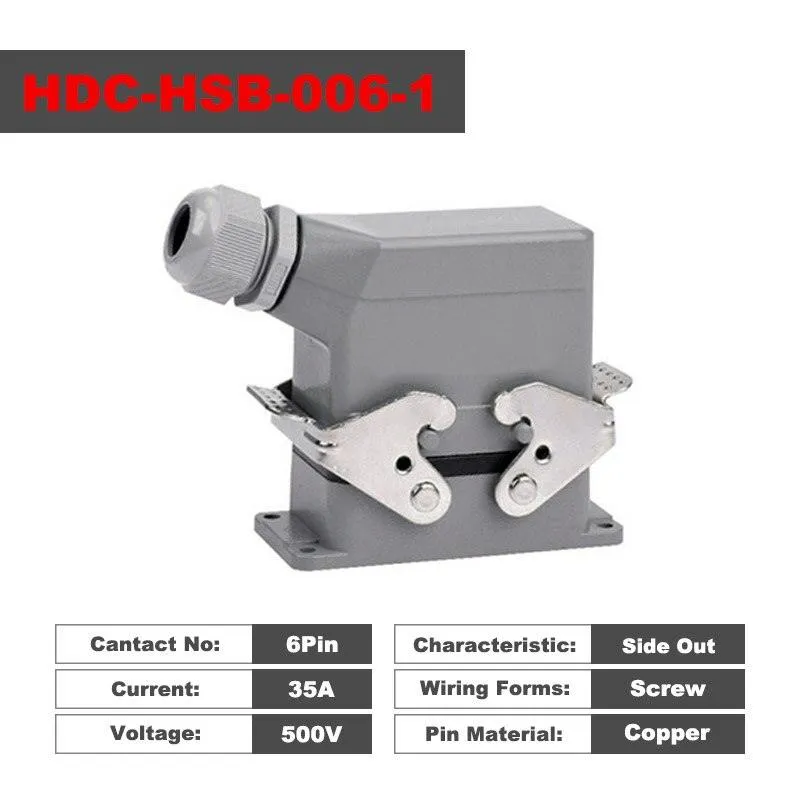

Model Number: HDC-HSB-006-1

Certification: CE

Brand Name: CNMAWAY

Parameter

Plug body

Working current: 35A

Working voltage: 500V

Rated pulse voltage: 6KV

Pollution level: 3

Isolation resistance: ≥10

Material: Polycarbonate

Operating temperature range: -40℃~ 125℃

Flame retardant grade (according to UL94): V0

Conductor section: 0.5- 6mm²

Installation method: hole installation

Connectors

Material: Copper

Surface treatment: silver plated

Contact resistance:=<1m ohm

Wiring form: screw connection

Screw tightening torque/test torque: 0.25Nm

Wiring forms: screw fixing

Metal upper case/base

Material: Cast aluminum alloy

Surface treatment: high temperature powder coating

Locking device: stainless steel or iron galvanized

Operating temperature range: -40℃~ 125℃

Protection class: IP65
